Spatial partitioning for collision detection

When dealing with many objects on screen: projectiles, particles, characters and more; collision detection can quickly become a bottleneck. Brute-force checks between entities don’t scale. Spatial partitioning can be used as a solution and this brief article covers it via 2D collision detection, its common performance bottlenecks, and how quadtrees can make a difference. We’ll walk through a real example using Rust and Macroquad.

Table of contents


Why spatial partitioning?

Naive collision detection checks every object against every other, quickly becoming impractical at scale. By exploiting objects’ position info, we can avoid needless checks and focus only on those close enough to interact.

Spatial partitioning organizes objects in space to minimize unnecessary comparisons. By partitioning space cleverly, we reduce the computational effort needed to answer spatial queries efficiently.

For collision detection, we should only care about objects likely to collide with a given target—why check things that are clearly too far away?

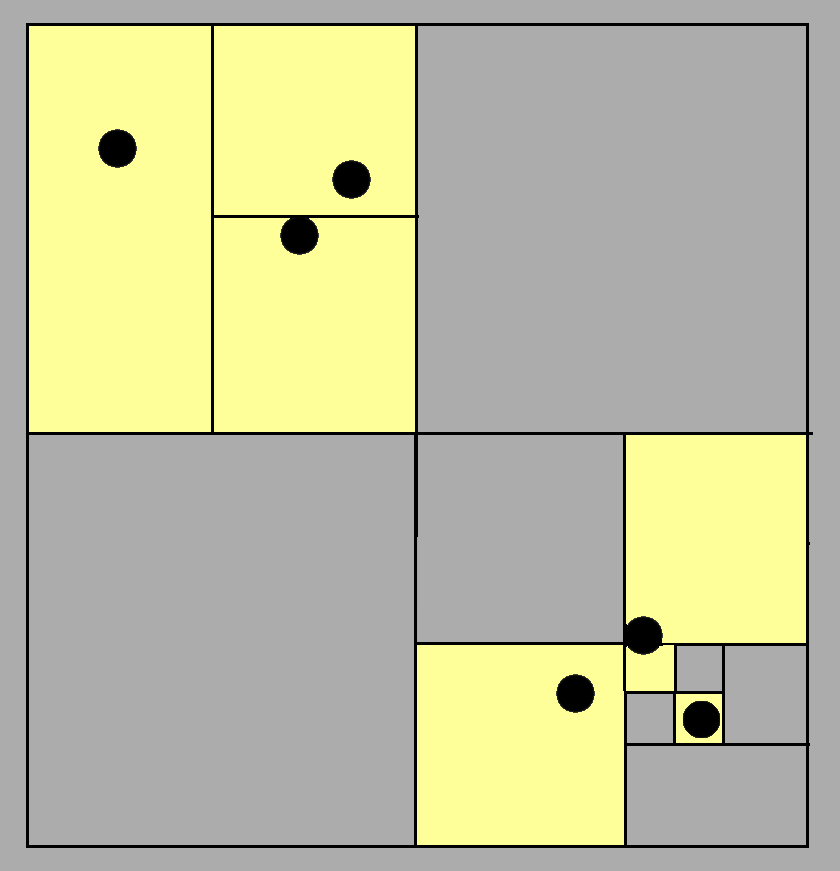

Visualization of the quadtree partitions

Games, simulations, and physics engines use spatial partitioning for fast “what’s near me” lookups, including:

Sidenote: I highly recommend Bob Nystrom’s article, which is where I took the above image from: https://www.gameprogrammingpatterns.com/spatial-partition.html


2D collision detection

As said before, the naive way is to loop through every pair of objects and check if they collide.

for i in 0..entities.len() {
    for j in (i+1)..entities.len() {
        check_collision(&entities[i], &entities[j]);
    }
}

This works fine when we’re only handling a small number of comparisons per frame. But the moment object count rises, it turns into a frame-killer. 1,000 objects means nearly 500,000 checks every frame.

\[ \begin{aligned} \text{Total comparisons} &= \frac{N(N + 1)}{2} \\ &= \frac{1000 \times 1001}{2} \\ &= \frac{1001000}{2} \\ &= 500500 \end{aligned} \]

Entity 0 checks against [1, 2, …, 999], Entity 1 checks against [2, …, 999], and so on. You’re looking at $ 1000 + 998 + 997 + … + 1 $ comparisons. That’s the sum of the first N natural numbers, where N is the number of objects. We’re dealing with $ O( n( n+1 ) / 2 )$ which becomes $ O( n^2 ) $ for large $ n $, the gain is negligible.

The major downside of this approach is that we have no idea which objects are worth checking. We could, in theory, compute every possible distance and perform collision detection on the entire set—but that would be wildly inefficient. There has to be a better way to query nearby objects without sacrificing performance this severely. What we want is, at worst, an $ O(N ) $ operation that tells us exactly who’s nearby.


Useful data structures

Grids

Split the world into uniform, fixed-size cells, like a chessboard covering the entire space. Each object is assigned to the cell it falls into. When querying:

Querying cost

\[ T_\text{grid} \approx 9k \quad\implies\quad O(1)\ (\text{if }k\text{ is bounded}) \]

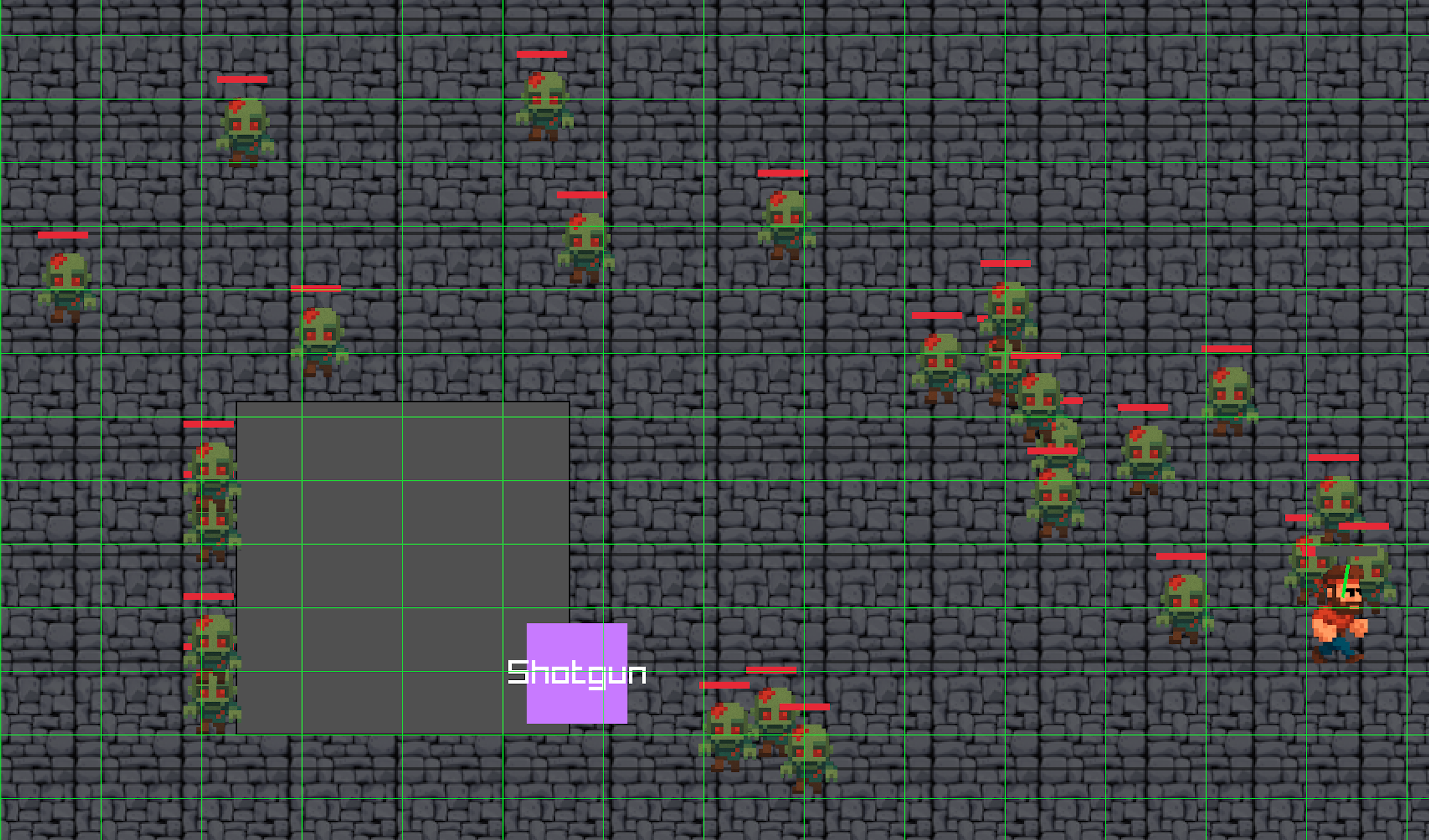

Grid partitioning visualization

NOTE: Grids are fast and simple, but they don’t scale well when object densities vary a lot. Sparse regions waste memory.


Quadtree

Quadtrees handle uneven density well by splitting space more where objects cluster and keeping it coarse where no objects are present. They shift the complexity onto the data structure and management, rather than on raw computation effort during queries.

Querying cost
\[ T_\text{quadtree} \approx O(h + m) \approx O(\log N + m) \]

where $ m $ is the number of reported neighbors (usually small).

Tree traversal \[ tree height = h \approx \log_4 N = O(\log N) \]

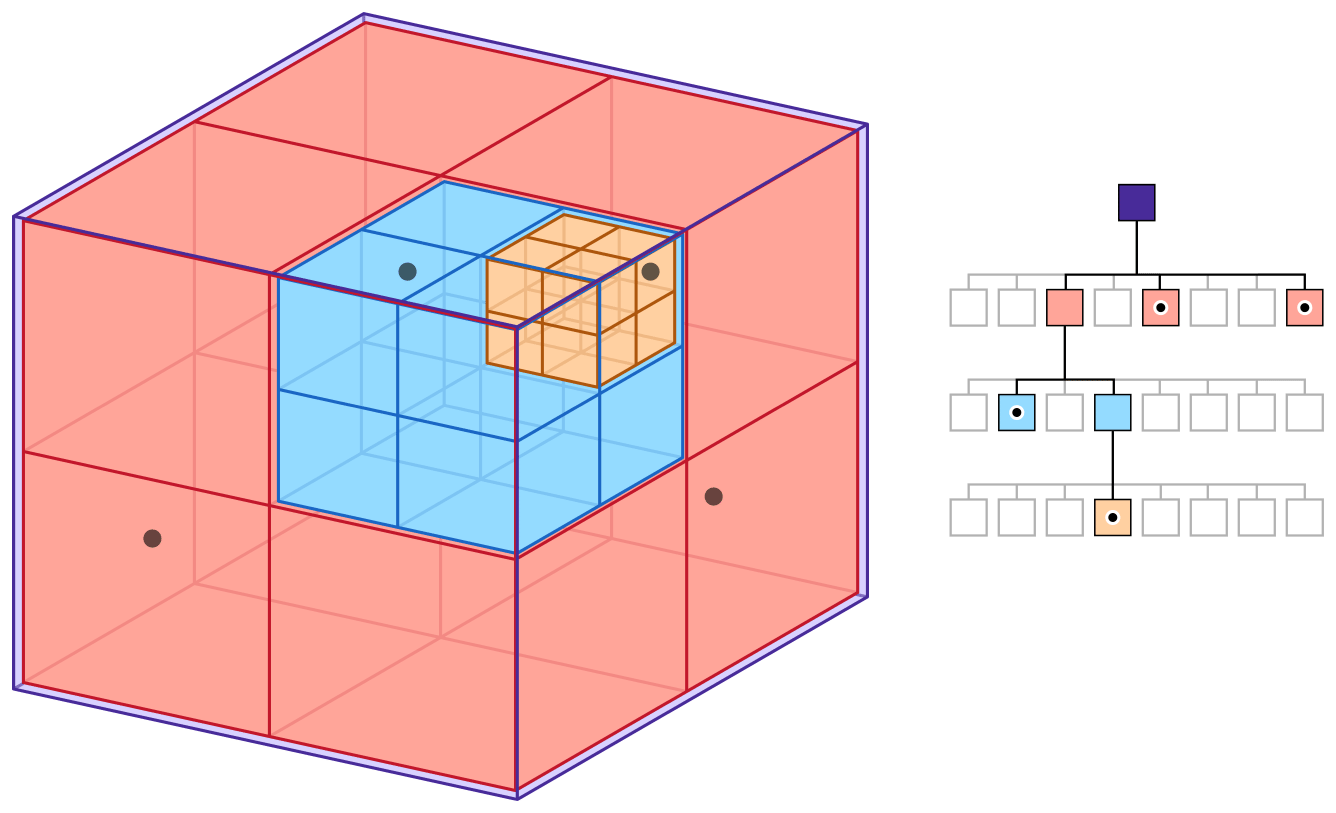

Quadtree partitioning visualization


Implementing a quadtree

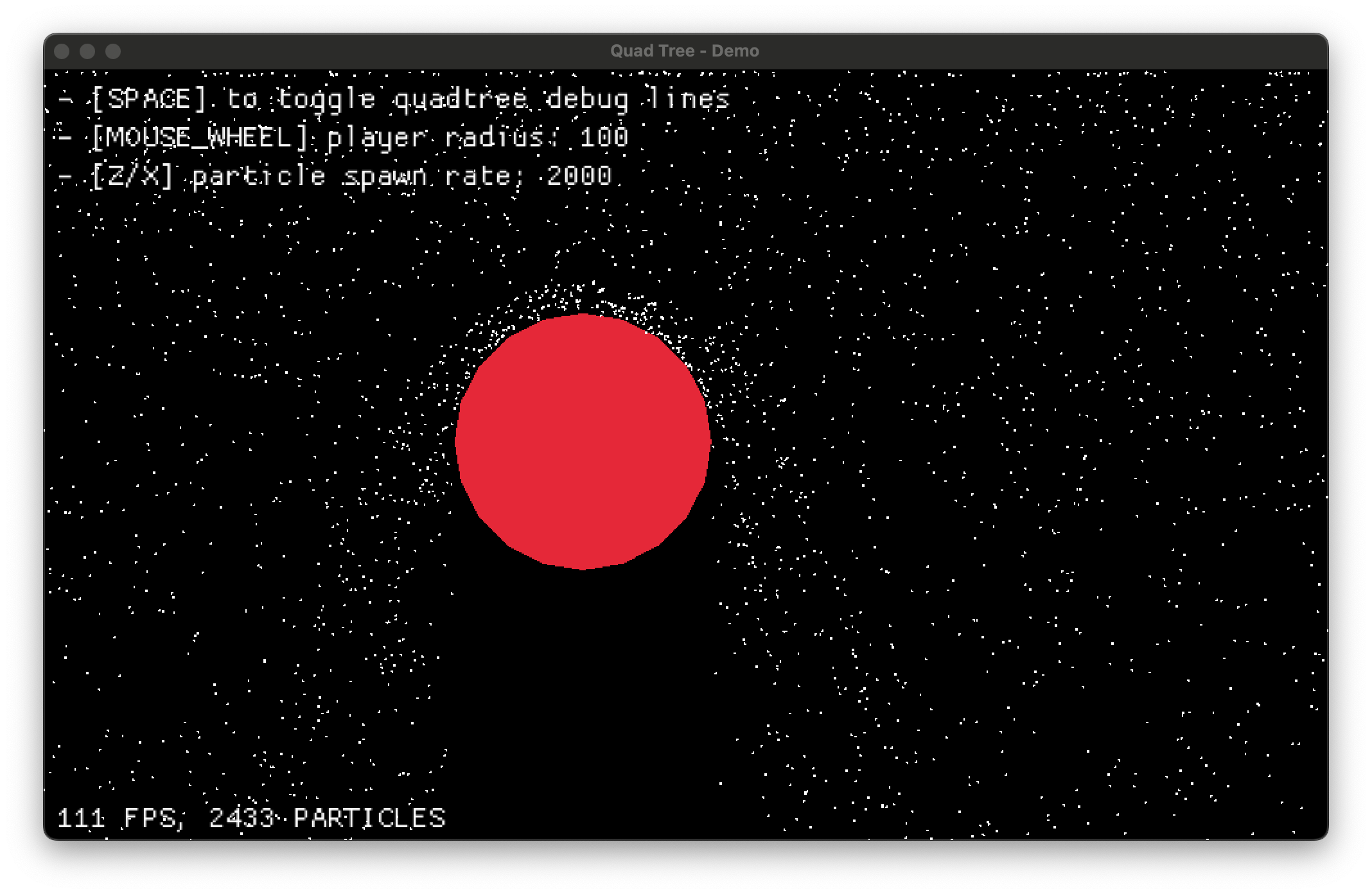

I’ve built a simple demo to show you how a quadtree behaves and where it becomes useful. For this demo I’ve implemented a simple Rust + Macroquad program of a floating circle colliding against a raining set of particle falling at a constant rate and different speeds. Collision resolution is secondary and was implemented in the simplest way possible, thus it simply resolves to the collision direction + some dampening effect given by the objects relative velocities.


We’ll be creating


Resources

The heart of this system is the QuadNode struct, which simply represents a node in our quadtree:

struct QuadNode {
    region: Rect,
    points: Vec<(u32, Vec2)>,
    regions: Vec<Box<QuadNode>>,
}

Each node contains:

When working with quadtrees you need to care about:


Making regions

Very straightforward, code explains it better than words

impl QuadNode {
    fn new(region: Rect) -> Self {
        Self {
            region,
            points: Vec::new(),
            regions: QuadNode::make_regions(&region),
        }
    }

    fn make_regions(region: &Rect) -> Vec<Box<QuadNode>> {
        let x = region.x;
        let y = region.y;
        let hw = region.w / 2.0;
        let hh = region.h / 2.0;
        vec![
            Box::new(QuadNode::new_empty(Rect::new(x, y, hw, hh))),
            Box::new(QuadNode::new_empty(Rect::new(x + hw, y, hw, hh))),
            Box::new(QuadNode::new_empty(Rect::new(x, y + hh, hw, hh))),
            Box::new(QuadNode::new_empty(Rect::new(x + hw, y + hh, hw, hh))),
        ]
    }
}


Adding points

Adding a point is easily solved via recursion:

For the purpose of this demo we can go on recursively assuming our tree won’t be that deep in the worst case scenario, to fix any arising issue we can play with the region limit parameter.

fn add(&mut self, id: u32, position: &Vec2) {
    if !self.region.contains(position.clone()) {
        return;
    }

    if self.regions.len() == 0 {
        if self.points.len() == QUADTREE_REGION_LIMIT {
            self.split();
            self.add(id, position);
        } else {
            self.points.push((id, position.clone()));
        }

        return;
    }

    for region in &mut self.regions {
        region.add(id, position);
    }
}

NOTE: The region limit is a critical hyperparameter that creates a tradeoff: setting it higher shifts computation toward collision checks while reducing memory usage, whereas setting it lower moves computation to quadtree structuring which uses more memory but reduces collision checks during operation.


Querying

fn query(&self, query_area: &Rect) -> Vec<(u32, Vec2)> {
    let mut ids = Vec::new();
    for node in &self.regions {
        if node.in_region(query_area) {
            if node.regions.len() > 0 {
                ids.append(&mut node.query(query_area));
            } else {
                ids.append(&mut node.points.clone());
            }
        }
    }
    ids
}


Quadtree update and collision detection

In the main game loop, we want rebuild the quadtree each frame:

NOTE: quadtrees aren’t really designed for highly dynamic scenes. They suit mostly static or slowly changing environments. For the purpose of coolness and real-time demo purposes, we update and rebuild the quadtree every frame as stuff moves.

let mut qtree = QuadNode::new(Rect::new(
    0.0,
    0.0,
    WINDOW_WIDTH as f32,
    WINDOW_HEIGHT as f32,
)); // initial region = screen space

for (i, particle) in particles.iter().enumerate() {
    qtree.add(i as u32, &particle.entity.position);
}


Collision Detection

I won’t get into the details of how this works as it is pretty straightforward and simple enough to fit in about 40 LOC. What we want here is a way to resolve collisions with a given player body. My basic approach was to:

In here you’ll see collision resolution based the circle surface normal and reflection vector causing a sort of bounce effect.

let player_rect = Rect::new(
    player.entity.position.x - player.entity.bound.r,
    player.entity.position.y - player.entity.bound.r,
    player.entity.bound.r * 2.0,
    player.entity.bound.r * 2.0,
);

for i in qtree.query(&player_rect).iter().map(|p| p.0) {
    if particles[i as usize]
        .entity
        .bound
        .overlaps(&player.entity.bound)
    {
        let particle = &mut particles[i as usize];
        let particle_pos: Vec2 = particle.entity.bound.point();
        let player_pos: Vec2 = player.entity.bound.point();

        // normal vector for reflection
        let normal = (particle_pos - player_pos).normalize();
        let separation_distance = particle.entity.bound.r + player.entity.bound.r;
        particle.entity.position = player_pos + (normal * separation_distance);

        // get reflection vector using the normal
        // v' = v - 2(v·n)n where n is the normal and v is the velocity
        particle.velocity = (particle.velocity + player_velocity)
            - (normal * (2.0 * particle.velocity.dot(normal)));

        // dampening and min velocity
        particle.velocity = particle.velocity * 0.3;
        if particle.velocity.length() < 100.0 {
            particle.velocity = particle.velocity.normalize() * 100.0;
        }

        // small random variation for a fake natural effect
        {
            let angle_variation: f32 = rand::gen_range(-0.1, 0.1);
            // apply temp rotation matrix
            let cos_theta = angle_variation.cos();
            let sin_theta = angle_variation.sin();
            let vx = particle.velocity.x * cos_theta - particle.velocity.y * sin_theta;
            let vy = particle.velocity.x * sin_theta + particle.velocity.y * cos_theta;
            particle.velocity = Vec2::new(vx, vy);
        }
    }
}

You can easily see how we’re reducing the number of checks. What we’re checking collisions against isn’t the whole set of particles anymore: we let the quadtree give us the most relevant set of particles that are very likely to collide with the object of interest!


Debug drawing

Just so that we’re working with Rust, we’ll use traits. A Drawable trait is used throughout the demo so that any drawable thing will expose this function. So just like the player implements it, we can also implement the Drawable trait for a QuadNode. I’ll use recursion again here, as it became a habit.

trait DrawShape {
    fn draw(self: &Self) {}
}

impl DrawShape for QuadNode {
    fn draw(&self) {
        let r = self.region;
        draw_rectangle_lines(r.x, r.y, r.w, r.h, 1.0, GREEN);
        for region in &self.regions {
            region.draw();
        }
    }
}

impl DrawShape for Player {
    fn draw(&self) {
        draw_circle(
            self.entity.position.x,
            self.entity.position.y,
            self.entity.bound.r,
            RED,
        );
    }
}

impl DrawShape for Particle {
    fn draw(&self) {
        draw_circle(
            self.entity.position.x,
            self.entity.position.y,
            self.entity.bound.r,
            WHITE,
        );
    }
}


User controls implementation

The user interaction system allows for real-time modification of simulation parameters, e.g.:

// adjust player radius with mouse wheel
let (_, mouse_wheel_y) = mouse_wheel();
if mouse_wheel_y != 0.0 {
    player.entity.bound.r = (player.entity.bound.r + mouse_wheel_y * 5.0)
        .max(30.0)
        .min(300.0);
}


Visualizing the quadtree structure

To better understand how the quadtree adapts to particle distribution, we can toggle a debug visualization with the space bar:

impl DrawShape for QuadNode {
    fn draw(&self) {
        let r = self.region;
        draw_rectangle_lines(r.x, r.y, r.w, r.h, 1.0, GREEN);
        for region in &self.regions {
            region.draw();
        }
    }
}

// in the draw block
if debug_lines {
    qtree.draw();
}

Each quadtree node is outlined in green, showing how space is partitioned dynamically.

Quadtree visualization example:

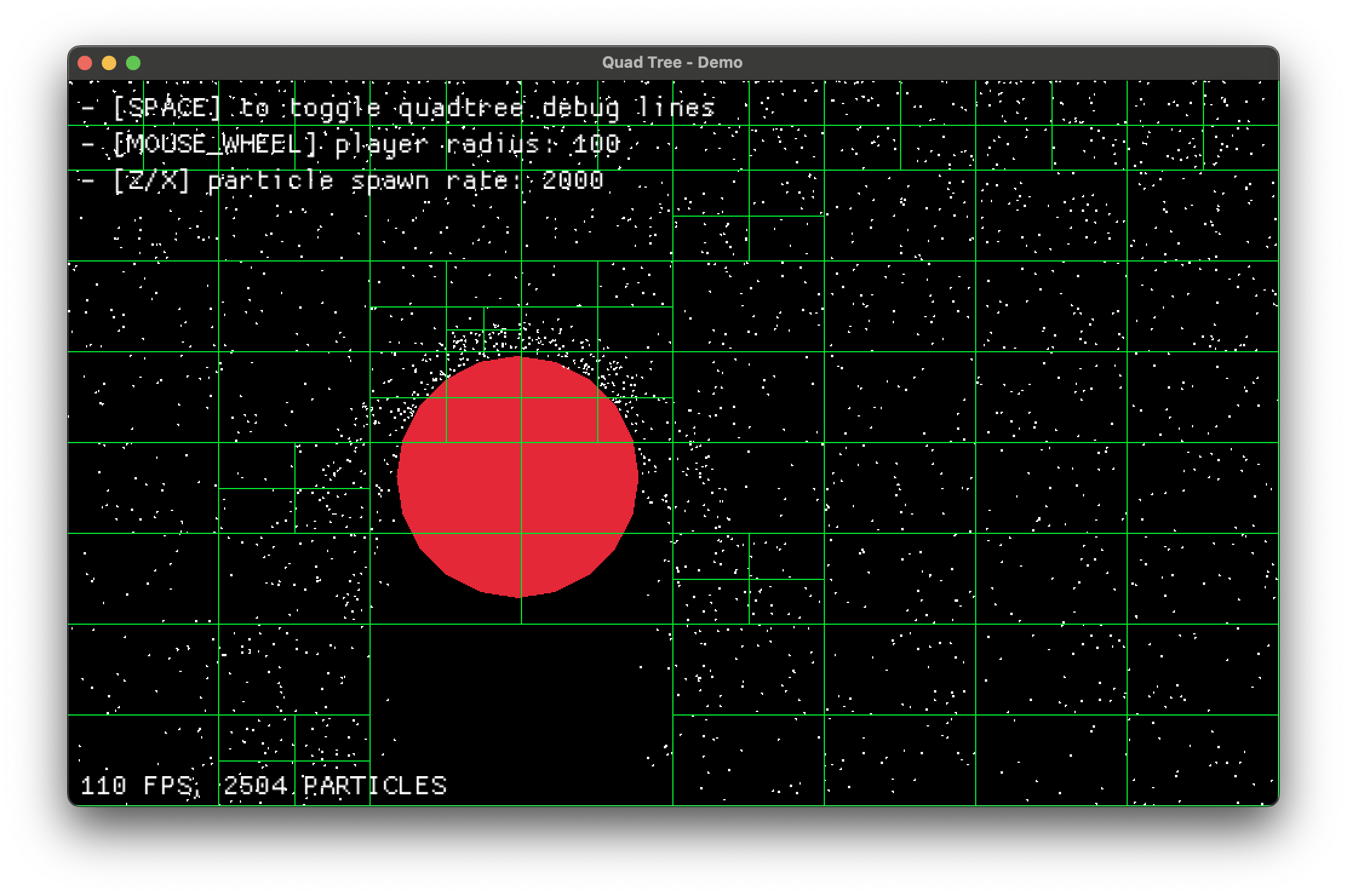

Visualization of the quadtree partitions

Green lines reveal how dense areas are subdivided further for efficient collision checks.


Tweaking parameters for performance testing

You can tweak a few constants to study the quadtree’s behavior:

const QUADTREE_REGION_LIMIT: usize = 50;   // max points before splitting
const PARTICLE_SPAWN_INTERVAL: f32 = 0.05; // time between particle spawns
const PARTICLE_SPAWN_RATE: f32 = 2000.0;   // particles per second
const PARTICLE_RADIUS: f32 = 1.0;          // particle size in pixels

Increasing QUADTREE_REGION_LIMIT means fewer splits, but heavier queries. Tuning PARTICLE_SPAWN_RATE stresses the system with different entity loads.
(Dynamically adjusting them via user input would be cleaner, but I left it static.)


Displaying FPS

Quick and simple:

draw_text(
    format!("{} FPS", get_fps()).as_str(),
    WINDOW_WIDTH as f32 - 120.0,
    30.0,
    30.0,
    WHITE,
);

To wrap up

Now that we have a rough idea of how a quadtree is used, I didn’t include the full code here since it’s a bit too long, but you can get it here.

Alternatively, you can copy and paste the following to try the demo yourself:

git clone https://github.com/th3terrorist/quadtree-demo.git
cd quadtree-demo
cargo run --release

Efficient collision detection comes down to minimizing redundant checks. Spatial partitioning structures shift complexity from runtime computation to structured queries, giving you near-logarithmic lookup times and consistent performance in the right domains. Thanks for reading.

Credits

All external images used are credited to their original authors.
This article was written as an educational, non-commercial exploration of spatial partitioning techniques.
